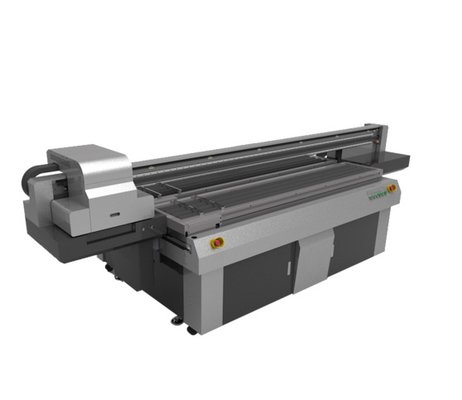

AC COLOR 2513 Digital Cylinder Printer
Parameters
|
Model |
AC-2500 |
| Print size |
2500mm*1000mm |
|
Print color |
CMYK +W |
| Brand of head |
Ricoh G5I |
|
Print height |
1-100mm( Up to 35 cm ) |
| Print accuracy |
Non-destructive accuracy weight 100 kg |
|
Ink system |
600-1800 DPI,3.5PL ink drop |
|
Print speed |
Intelligent cycle connection system for secondary cartridge 100-200 pcs/h |
|
Automatic cleaning |
Automatic positive pressure cleaning |
|
Lift function |
Intelligent lift |
|
Ink Characteristics |
Environmental friendly uv ink |
|
Print head control |
Software adjustment of print head temperature and voltage |
|
Curable system |
UV LED light curable system |
|
RIP Software output |
RIP Print |
|
Color management |
Admitted to international ICC standard |
|
Image format |
TIFF,JUEG,postscript 3,EPS,PDF etc |
|
Power supply |
AC220/110,50/60Hz |
|
Operational environment |
Temperature:20℃-28℃;Humidity:40-60%RH |
|
Print head protection |
Automatic protection system for intelligent touch detection |
|
Equipment size |
4200*1650*1350mm |
Fast and flexible, this cylinder printing machine is ideal for use in the drinkware, barware, candle, and industrial printing industries.
1.One-piece platform
Accurate and smooth , solid and durable , partition absorb , high efficient and energy saving .
2.White ink
4+4 color project , lively color , excellent colors output .
3.Hommization design
Individual control panel , friendly interface , easy for real time monitoring and controlling . components layout clear , easy maintenance .
4.Comprehensive print software
One-stop operation with RIP software , controlling printer and managing output colors .
