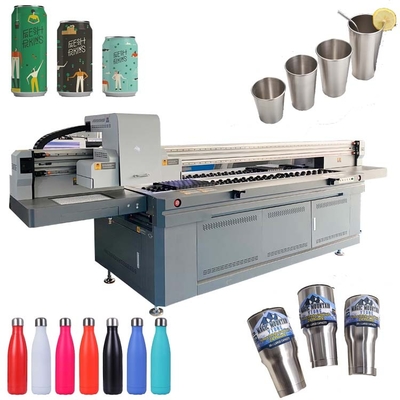

Printing Shops UV Cylinder Digital Inkjet Printer For Glass Bottle Ceramic Tile Printer Bottle Printing Machine

1 Set
MOQ
$38,000.00(1 - 1 Sets) $37,000.00(>=2 Sets)
Price
Printing Shops UV Cylinder Digital Inkjet Printer For Glass Bottle Ceramic Tile Printer Bottle Printing Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Inkjet Printer
Applicable Industries: Printing Shops, Advertising Company
Condition: New
Plate Type: Flatbed Printer
Usage: Uv Printer
Automatic Grade: Semi-automatic
Color & Page: Multicolor
Voltage: 220V/110V
Dimensions(L*W*H): 43330*2088*1300mm
Weight: 1000 KG
Warranty: 1 Year
Print Dimension: 1325
Ink Type: UV INK
Key Selling Points: High-accuracy
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Motor, Printhead Board Mainboard
After-sales Service Provided: Engineers Available To Service Machinery Overseas
Ink Type: UV Ink
Product Name: UV Flatbed Printing Machine
Ink Color: K C M Y LC LM W V
Media Type: All Kind Of Materials
Printhead: CEW4
Gross Power: 7.5KW
Certification: CE
Printing Size: 1300MM*2500MM
Basic Infomation
Certification: CE
Payment & Shipping Terms
Packaging Details: wooden box package
Supply Ability: 100 Set/Sets per Month
Product Description
promption banner

Printing size

2500mm *1300mm

Nozzle number

(3+2)*2( double row, double station)

Print head

TOSHIBA CE4

Print color

C, M, Y, K, W, LC, LM

Print resolution

360-1440DPI

Ink

Using environmentally friendly UV ink

Ink system

Intelligent circulating continues supply system for secondary ink cartridge

Print height

1-250mm

Print weight

Non-destructive precision weight 100KG

Print speed

100-200pcs/h

Media

Wine bottle, water cup, vacuum flask, any cylinder

Image format

TIFF, JPEG, Postscript 3, EPS, PDF,.etc

Power/ Voltage

110-220V 50-60HZ

Curing system

LED UV lamp curing system

Normal working environment

Temperature 20-28 degrees Relative humidity 40%-60%

Machine size

4200mm x 1420mm x 2010mm

FAQ

1. What materials can uv printer print on ?

printers are multi-functional printers: it can print on any materials such as phone case, leather, wood, plastic, acrylic, pen, golf ball, metal, ceramic, glass, textile and fabrics etc...

2.Can LED UV printer print embossing effect?
Yes, it can print embossing effect, for further information or samples pics, please contact our representative salesman.
3.Does it must be sprayed a pre-coating?
some material need pre-coating , such as metal, glass,etc
4.How can we start to use the printer?
We will send the manual and teaching video with the package of the printer.
Before use the machine,please read the manual and watch the teaching video and operate strictly as the instructions.
We will also offer excellent service by providing free technical support online.
5.What about the warranty?
Our factory provide one year warranty: any parts (except print head,ink pump and ink cartridges) questions on normal use, will provide new ones within one year(not include shipping cost). Beyond one year, only charge at cost.

6. what’s the printing cost?
Usually,1 square meters need cost about $1.
Printing cost is very low.
7.how can i adjust the print height?
Our printer installs infrared sensor so the printer can detect the height of printing objects automatically.

8.where can i buy the spare parts and inks?
Our factory also provide spare parts and inks,you can buy from our factory directly or other suppliers in your local market.

9.what about maintenance of the printer?

About maintenance,we suggest to power on the printer once a day.
If you don’t use the printer more than 3 days, please clean the print head with cleaning liquid and put in the protective cartridges on the printer (protective cartridges are specially used for protect print head)
