Advertising Freecolor FC-UV4060D DTF Indoor Outdoor UV Flatbed Printer with 15cm Printing Size

1 Set
MOQ
Advertising Freecolor FC-UV4060D DTF Indoor Outdoor UV Flatbed Printer with 15cm Printing Size
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Inkjet Printer
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Food & Beverage Factory, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising Company, Other
Condition: New
Plate Type: Flatbed Printer
Usage: Paper Printer, Label Printer, Card Printer, Tube Printer, Cloths Printer, Gift Printer
Automatic Grade: Automatic
Color & Page: Multicolor
Voltage: 110v/240v
Dimensions(L*W*H): 900x950x500mm
Weight: 80 KG
Warranty: 1 Year
Print Dimension: 300*500mm
Ink Type: UV Ink, UV CURING INK A3plus Uv Printer
Key Selling Points: High Productivity
Marketing Type: New Product 2021
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 2 Years
Core Components: Motor, Pressure Vessel, Pump, PLC, Gear, Bearing, Engine
Product Name: FC-UV 4060D Printer
Ink Color: CMYK+W+V
Application: Indoor Outdoor Advertisement
Printing Material: Flatbed Material
Brand: Freecolor
RIP Software: Maintop(main) Photoprint(optional)
Printing Size: 300*550mm
After Warranty Service: Video Technical Support
Showroom Location: Canada
Basic Infomation
Payment & Shipping Terms
Packaging Details: wood box
Product Description
Product Description
Product Application: FCV-UV4060D Flatbed Printer

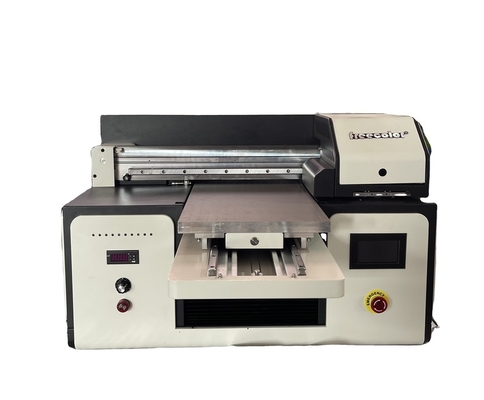

FC-UV4060D UV-LED Direct to Substrate Printer
Freecolor's FC-UV4060D is our new multifunctional uv printer ! it with double headsm support color+white+varnish printing at same time. This new technology combine UV curable inks and a built-in UV-LED lamp to produce vibrant full color and textured imprints that cure rock-solid on a huge variety of substrates, including dark and clear materials!

SAMPLES

Specification
Printer Model
FC-UV4060D
Print head
2 pieces Epson DX10 head
Ink
CMYK + White+ Varnish
Print Speed
1-3 square meter per hour
Print Size
30x55cm max wth vacuum aluminium alloy table
Print Height
15cm max.
Rotary Device
Optional
Print Resolution
720x1080 / 720x1440 / 720x2160 dpi
RIP Software
Maintop 6.0 or Photoprint 12
Cleaning System
Auto Cleaning System
White Ciculation System
Yes
Ink Supply System
Open Bulk Tank With Ink Lack Alarm Device
Printer Dimension
800x850x570mm
Computer System Requirement
Windows 7 / 10 64bit
Connection Port
USB 2.0 /3.0
Cooling System
Water Circulation Cooling
Motor Brand
Leadshine Servo
Produce and Test
Details Images
Machine Parts


Name: Imported UV led system
Original: Germany

Main Features


Name: Lift cap station system
r
High quality Automatic ink absorption cleaning control unit. which could greatly extend print head life span.
Machine Parts

Name: Imports mute drag chain
Original: Germany
With German imported wiring harness and drag chain,necessary to use the wire and greatly reduces the wear and tear, prolong the
service life of wire harness,greatly reduce drag chainmotion noise.
Main Features

Name: HIWIN line guide rail
Original: TAIWAN
Adopt the imported Hi-Win guide rail, and use the linear guide rail as the linearguide, The rolling friction can achieve the
effect of high precision positioning.With the stable running the noise of the guide rail is smaller and its service life is longer.
Packing & Delivery
wood box
Exhibition & Customer Visit
Company Profile
Vedio Description
Freecolor is global leader in direct-to-substrate, light industrial inkjet printing equipment with its main office in
Shanghai,China Known as "Easy print ”Freecolor has developed the exciting ability to print on a wide variety of substrates such as wood, metals, plastics, glass, ceramics, stone, vinyl, rubber and even curved products using simple inkjet technology. Freecolor research and development teams overcame challenges of ink adhesion, vibrancy and progressed from adding pre- and post-treatments on our proprietary oil based solvent inks, to eco-solvent inks which require no pre-treatment at all!
Our newest advancement harnesses the power of UV-LED printing technology, broadening even further customization capability.
Freecolor has established an international reputation as a reliable cost effective solution for businesses small to large.
Specializing in short run, full color decorating, Freecolor continues to develop, market and distribute light industrial solutions worldwide to custom imprinters, promotional products suppliers, distributors, retail golf shops, engravers and the sign digital graphic industry. Over the last 10 years, Freecolor has streamlined its brand to offer the most elite printing solutions and accessory configurations using specialty inks and custom printing trays.
We welcome the new ideas and challenges that each individual enterprise brings to the table. With our dedicated team of
professionals who embody each of our Core Values, Freecolor is committed to Empowering Customization and expanding your business
potential!
FAQ
Q1: How to move the machines?

UV printers belong to precise instrument, when you move them, please turn off all power, remove the cartridges and waste
cartridge, keep other parts on the printer, and handle with care, keep shaking and heavy goods away from the printer.

Q2: How much will cost for printing one square meters?


We can calculate the cost according to the price of ink, kindly note the ink consumption is about 15ML/M2.

Q3: What materials this printer can print on?


POP board, KT board, Acrylic, organic glass etc. The UV printing reduce much work and trouble like lamination, fading,
blistering,and save much working hours. Rigid signs board, hard carton or corrugated paper box, special market(like customize and decoration market): glasses, ceramic tiles, wood, even furniture.

Q4: How to make 3D effect texture?

Freecolor 3D printing technology, to accumulate UV ink to reach 3D effect. The 3D range can re-print to reach more 3D effect, e.g. Mountain, use the can reach more layering.

Q5: How to maintain the printer if couple of days no using the printer?


If the printer won't use more than 3 days, you must cleaning out all ink in the print head, otherwise, the ink will be dry because the solvent volatilization, even cause irreversible damage for the nozzles of the print head. Below is the solving methods:

A.Move the print head to the cleaning position, put a corrosion resistant container below the print head for filling the waste
cleaning solution.

B.Turn off the power of the printer.

C.Unplug the print head from the ink damper, then using the special cleaning solution to cleaning the print head by glass
syringe,and do this some times, at last do not suction out all cleaning solution from the print head, put enough cleaning solution in the inner of the print head, because the print head can keep the nozzles moisture.

D.Please put the print head into the clean container and seal it.

Q6: What RIP your machine use ? Did your price include RIP?

All prices include RIP, Different machine use different RIP, but all can reach the best vivid color.

Q7: Could your technician Come and install the machine to our address?


No problem, The technicians can come install and train your operators in person, but all fees like round tickets, VISA, lodging and boarding should be assured by buyer.

Q8: How long time of the warranty for your printer?

Our quality is guaranteed 100%, the printers have one year warranty, the spare parts can be replaced within one year free of charge, except for the print head and some damageable parts. The technician can provide help for print-head problems.

Q9: Can we buy the ink from our local market or just yours?


Sure. You can buy the ink from other suppliers, as long as the ink is suitable for our printer and UV led lamp wave length.

Q10: How to do when the status of the printhead is not good ?

A.Turn off power, move the printhead to the initial position, check if the printhead and cap top is in the same line.Do one time
cleaning action, and print the test status.

B.If above operation still can't solve this problem, then disassembly the printhead, cleaning the printhead manually or use
cleaning machine to clean the printhead

C.If the status keep the same after above all operations, then check other pars or change a new printhead to test.
